All-O-Matic Slide Gate Pad Mount Operator (1HP 120VAC 9.0amp) | ALL-SL-150AC-1

All-O-Matic Slide Gate Pad Mount Operator (1HP 120VAC 9.0amp) | ALL-SL-150AC-1

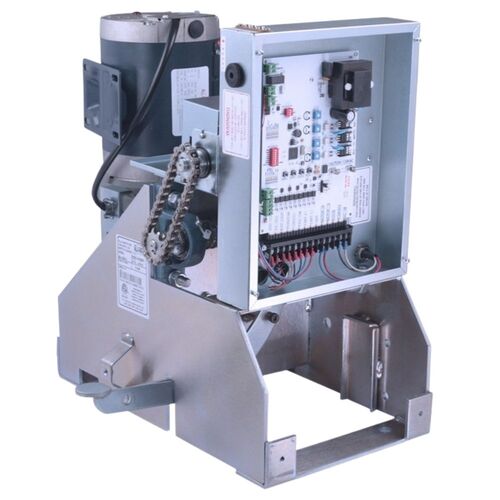

The SL-150AC was designed to meet the demands of gate installers who want a gate operator that can handle heavy traffic, commercial/industrial heavy doors, and/or extreme weather conditions. The combination of its heavy-duty frame, reliable gearbox, and powerful AC motor makes even the most challenging installations simple and easy. The SL-150AC 1HP motors are capable of moving up to 2,500 lb. gates.

Also available in a DC version with full-time battery backup and a brushless DC motor ( SL-150 DC )

AC operators come with the simplest and most dependable control board in the industry that’s backward compatible. A powerful and durable motor that has been field-tested for over 20 years. The majority of AC operators now include an emergency foot pedal release and a built-in loop rack.

Include

• 20 Feet Of # 40 Chain

Technical Specifications

• Max Gate Weight: 2,500 lbs.
• Max Gate Length: 60 feet
• Warranty: 7 years residential – 5 years commercial

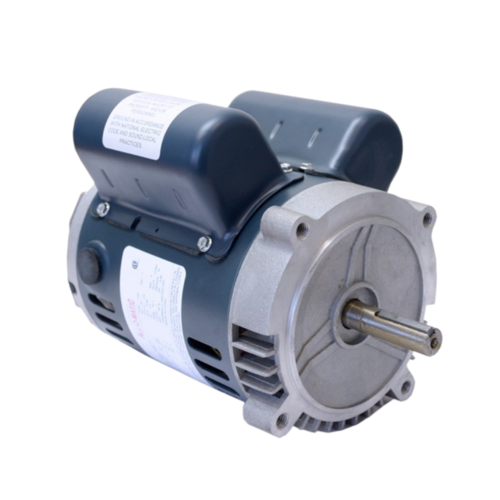

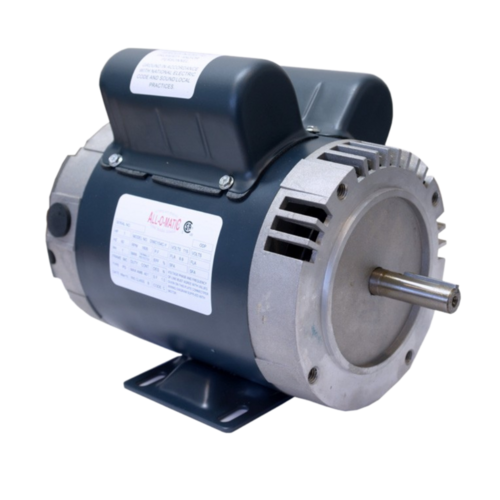

• Motor: 1 HP
• Gate Speed: 12” per second
• Power Options: 120 VAC
• Duty Cycle: Continuous
• Temperature Range: -40 to 160°

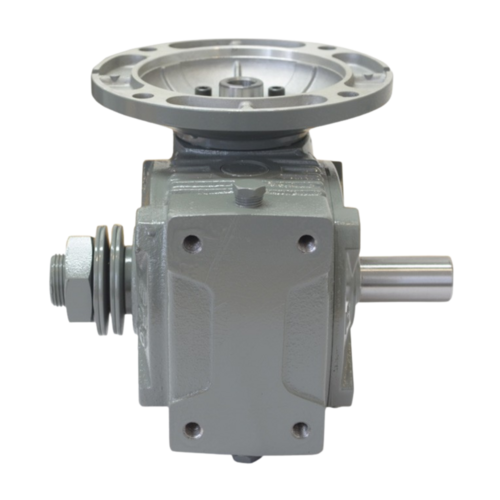

• Gearbox Ratio: 30:1 with internal clutch
• Size: 15” X 19.5” X 25”
• Shipping Weight: 150 lbs.
• Emergency Release: Mechanical foot pedal release
• Main Sprocket Size: 41B22X1
• Chain Size: 40NP (20’ included)
• Gearbox Sprocket: 40B22X1
• Limit Shaft Sprocket: 41B10X5/8
• Breaker Requirement: 20 amp dedicated

Product Literature

• All-O-Matic SL-150AC-1 Brochure
• All-O-Matic SL-150AC-1 Instruction Manual
• All-O-Matic SL-150AC-1 Blowout Drawing
