Linear Indoor and Outdoor Surface-mount Keypad

Linear Indoor and Outdoor Surface-mount Keypad

The sealed environment 232SE style keypad features a brushed metal housing that has been treated to resist corrosion and an all metal Braille, alpha-numeric keypad. There is an internal sounder that is used to indicate key press feedback, and a bi-color LED to indicate operation. The housing has been designed to mount directly on a standard single-gang electrical box, or on most flat surfaces.

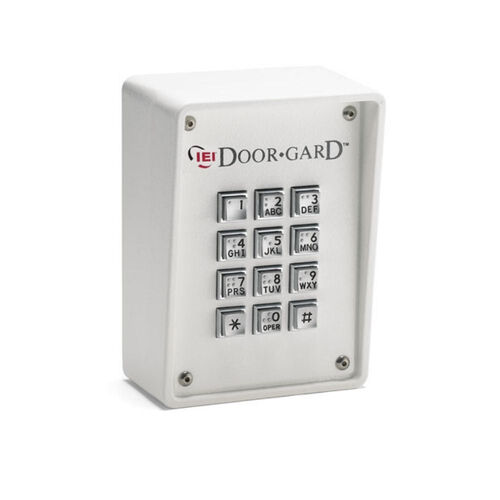

The ruggedized R style 232R keypad features a cast aluminum housing and all-metal faceplate that has been treated with polyurethane to increase its protection from corrosion. The ruggedized uses an all-metal Braille, alpha-numeric keys. There is also an internal sounder that is used to indicate key press feedback. The Ruggedized housing can be mounted to a variety of surfaces. Suggested mounting includes; gate goosenecks, post, concrete walls, etc. Additional tamper resistance is provided with the onboard tamper loop that can be used to indicate the removal of the faceplate.

Features

• 120 users
• Indoor/outdoor weather-resistant, self-contained metal housing
• Surface mount vandal-resistant design
• One-piece housing suitable for wall, post, or gooseneck mounting
• Durable metal Braille alpha-numeric keys
• 1 SPDT 2 amp relay and 3 – 1 amp SPDT access relays
• Door Position Monitoring
• Door ajar, Forced door, Alarm shunt outputs

Technical Specifications

• Current draw: 108 mA maximum (add 30 mA for each additional relay)
• Operating voltage: 12-24 VAC/DC – auto adjusting
• Dimensions: 3.00″ W x 4.50″ H x 1.55″ D (232SE) / 3.75″ W x 5.25″ H x 2.50″ D (232R)
• Temperature tolerance: -20F to 130F
• Order number: 0-232140 (232SE) / 0-213466 (232R)

• Functionality Mode: 212, 232

Product Literature

• Linear 232 SE/R Instruction Manual
• Access Code List Tracker
